Utilities

Namespaces
namespace	HydroBC
namespace	HydroUtils

Macros
#define	XVEL   0
#define	YVEL   1
#define	ZVEL   2

Functions
void	HydroUtils::enforceInOutSolvability (const amrex::Vector< amrex::Array< amrex::MultiFab *, AMREX_SPACEDIM > > &vels_vec, amrex::BCRec const *bc_type, const amrex::Vector< amrex::Geometry > &geom, bool include_bndry_corners=false)
	Enforces solvablity by scaling outflow to match with inflow.

Variables
static constexpr amrex::Real	small_vel = amrex::Real(1.e-8)
static constexpr amrex::Real	hydro_covered_val = amrex::Real(1.0e40)

Detailed Description

Macro Definition Documentation

XVEL

#define XVEL   0

Index for the X velocity component.

YVEL

#define YVEL   1

Index for the Y velocity component.

ZVEL

#define ZVEL   2

Index for the Z velocity component.

Function Documentation

enforceInOutSolvability()

void HydroUtils::enforceInOutSolvability	(	const amrex::Vector< amrex::Array< amrex::MultiFab *, AMREX_SPACEDIM > > &	vels_vec,
		amrex::BCRec const *	bc_type,
		const amrex::Vector< amrex::Geometry > &	geom,
		bool	include_bndry_corners = false
	)

Enforces solvablity by scaling outflow to match with inflow.

Only boundaries with BCType::direction_dependent take part. The inflow and outflow are integrated over the tagged boundary faces, and the outflow is then scaled by influx/outflux. Each face is weighted by its own area, so 2D RZ is handled (an r-face carries 2*pi*r*dz and a z-face 2*pi*r*dr); spherical coordinates are not supported and are asserted against. The test for "no flow at all" compares the mean normal speed over the tagged faces against small_vel, so it does not depend on the length scale of the problem.

Parameters

[in,out]	vels_vec	Per level, the normal velocity in each direction. Each MultiFab is read and written in its boundary ghost cells, so it needs (filled) ghost cells: one in the normal direction if it is cell-centered, and one in each tangential direction if include_bndry_corners is true. This is asserted.
[in]	bc_type	Boundary conditions for the normal velocity.
[in]	geom	Per level geometry.
[in]	include_bndry_corners	Also tag and correct the cells in the corners of the domain boundary.

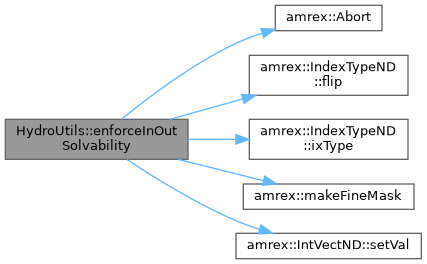

Here is the call graph for this function:

Variable Documentation

hydro_covered_val

constexpr amrex::Real hydro_covered_val = amrex::Real(1.0e40)

staticconstexpr

small_vel

small_vel = amrex::Real(1.e-8)

staticconstexpr

What we consider a ~zero velocity when upwinding.
